Tumblast Shot Blasting Machine
Tumblast is a batch type shot blasting machine designed for cleaning, descaling, deburring, and surface preparation of small to medium components. The machine tumbles workpieces continuously inside the chamber to achieve uniform blasting results and efficient production output.
Product Overview
Tumblast machines are suitable for processing castings, forgings, heat-treated parts, fabricated components, and mass-produced workpieces that require consistent surface cleaning. The tumbling action allows all surfaces of the components to be exposed to the blast stream during the operation.
This machine type is commonly used in foundry, automotive, metal fabrication, forging, die casting, and general industrial applications where productivity, repeatability, and reliable surface preparation are required.
Main Advantages
Efficient Batch Cleaning
Suitable for cleaning many small to medium parts in one blasting cycle.
Uniform Surface Result
Tumbling movement helps expose component surfaces evenly to the blast stream.
Reliable Production
Designed for continuous industrial operation and repeatable cleaning quality.
Versatile Application
Applicable for castings, forgings, machined parts, and fabricated metal components.
Technical Data
TC Series Tumblast Machines
Batch type tumblast machines for descaling, deburring, cleaning, and surface preparation. Select the model based on charge volume, charge weight, blast wheel capacity, power, and machine dimensions.

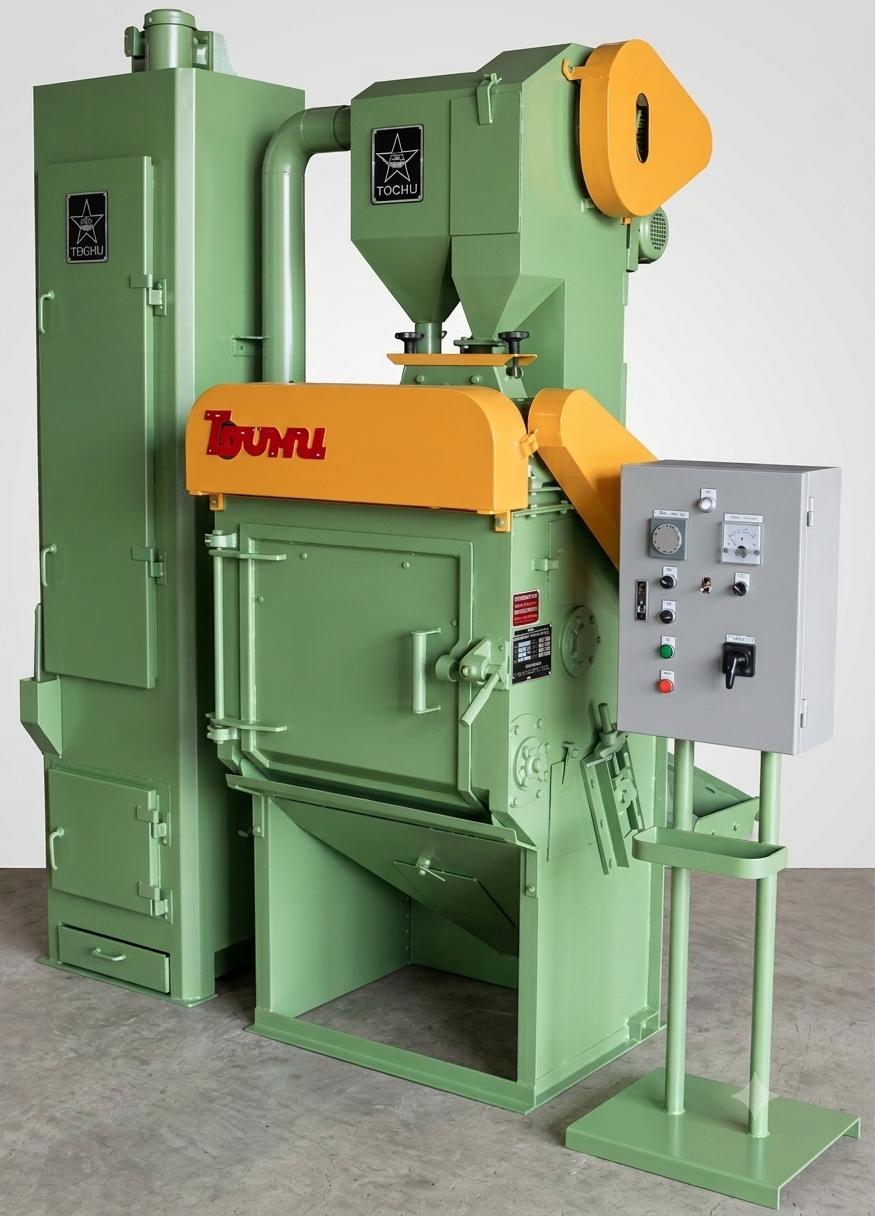

TC-60
Compact tumblast machine for smaller batch cleaning applications.

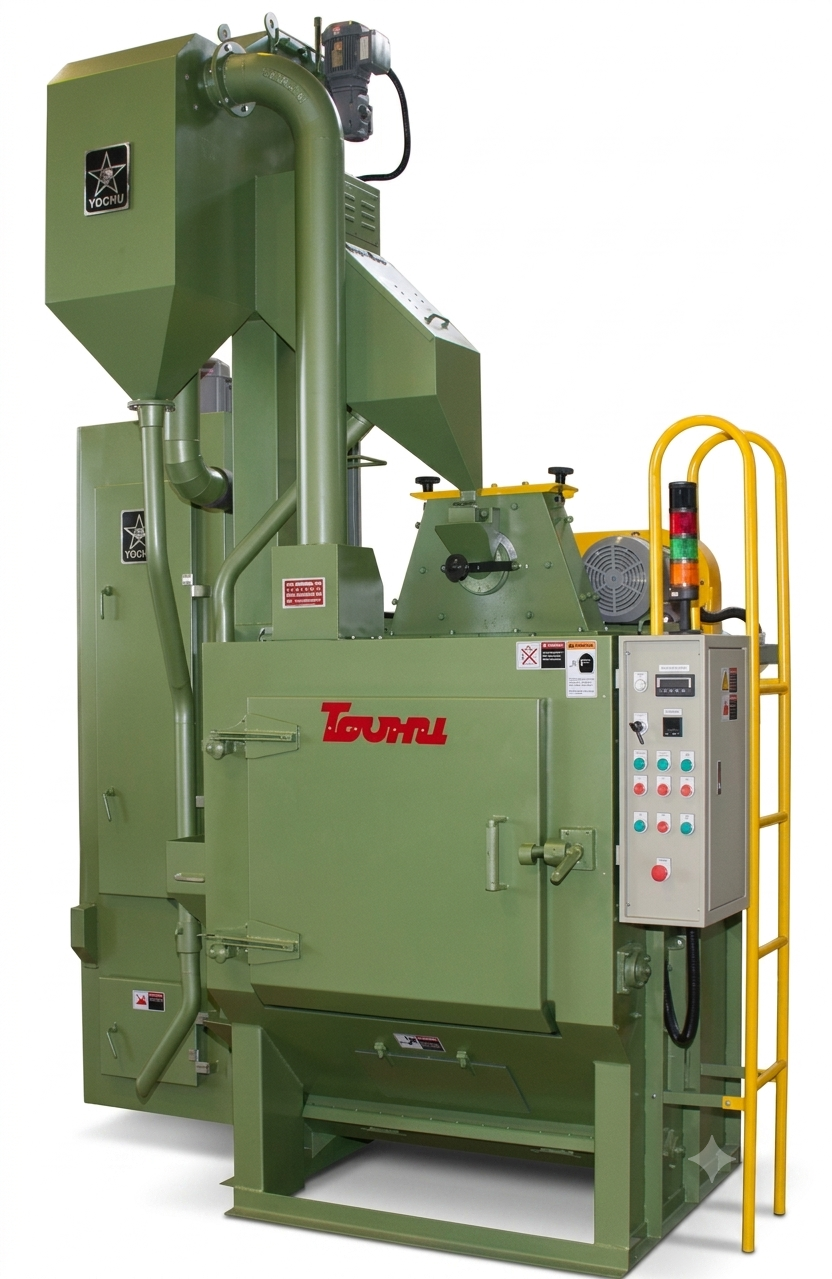

TC-312DM
Medium capacity model for heavier batch processing and production cleaning.

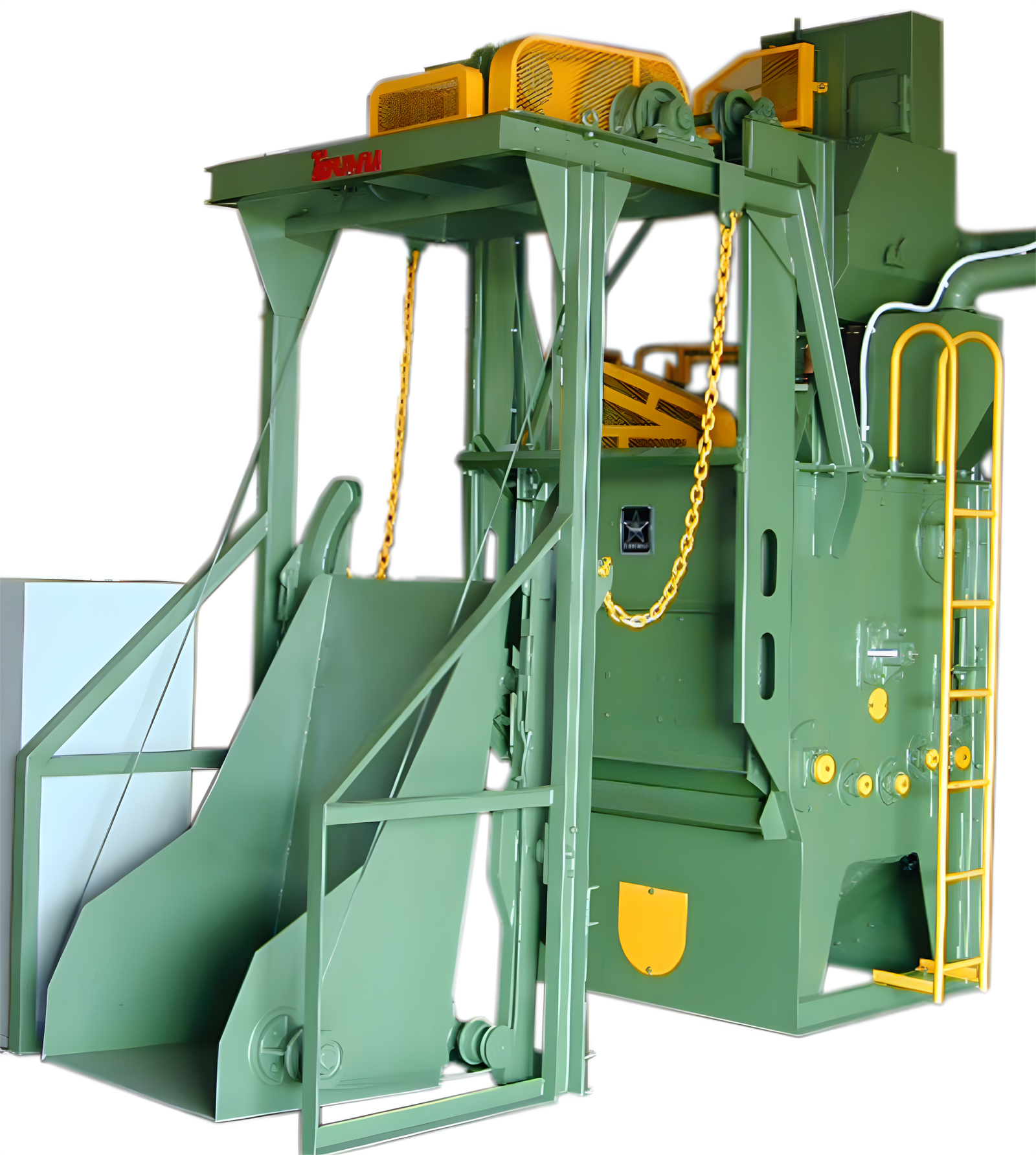

TC-500 / TC-1000
High capacity machine series for large charge weight and demanding operations.
Specification Table
TC-60 & TC-312DM
Unit: m³, kg, Hp, kW, mm
| Model Type | TC-60 | TC-312DM | |
|---|---|---|---|
| Charge Volume | 0.05 m3 | 0.2 m3 | |
| Max. Charge Weight | 70 kg | 300 kg | |
| Number of Blast Wheel & Capacity | 1 x 3 Hp (2.2 kW) | 1 x 7.5 Hp (5.5 kW) | |
| Total Power Requirements | 5 Hp (3.7 kW) | 11 Hp (8.1 kW) | |
| Machine Dimensions | Width | 1 100 mm | 1 200 mm |
| Length | 900 mm | 1 200 mm | |
| Height | 2 500 mm | 3 500 mm | |
Specification Table
TC-500 & TC-1000
Unit: m³, kg, Hp, kW, mm
| Model Type | TC-500 | TC-1000 | |
|---|---|---|---|
| Charge Volume | 0.3 m3 | 0.6 m3 | |
| Max. Charge Weight | 500 kg | 1 000 kg | |
| Number of Blast Wheel & Capacity | 1 x 20 Hp (15 kW) | 2 x 15 Hp (11 kW) | |
| Total Power Requirements | 33 Hp (24.7 kW) | 52 Hp (39 kW) | |
| Machine Dimensions | Width | 1 600 mm | 1 800 mm |
| Length | 4 400 mm | 5 000 mm | |
| Height | 5 100 mm | 5 800 mm | |
Applications
Recommended Usage
Suitable abrasive media solutions for tumblast machines, designed to deliver effective cleaning, descaling, and surface preparation performance for various metal components based on material characteristics, production requirements, and desired finishing results.
Recommended Abrasive Media
Steel Shot
General Cleaning
Steel Grit
Heavy Descaling
Cut Wire
Precision Finishing
Stainless Steel Shot
Stainless Components
Other metallic abrasive media can also be used depending on the application and required surface finish.
Need Tumblast Machine for Your Production?
Contact our team for tumblast machine selection, abrasive media recommendation, spare parts support, installation, maintenance, and technical consultation.
Request Inquiry
