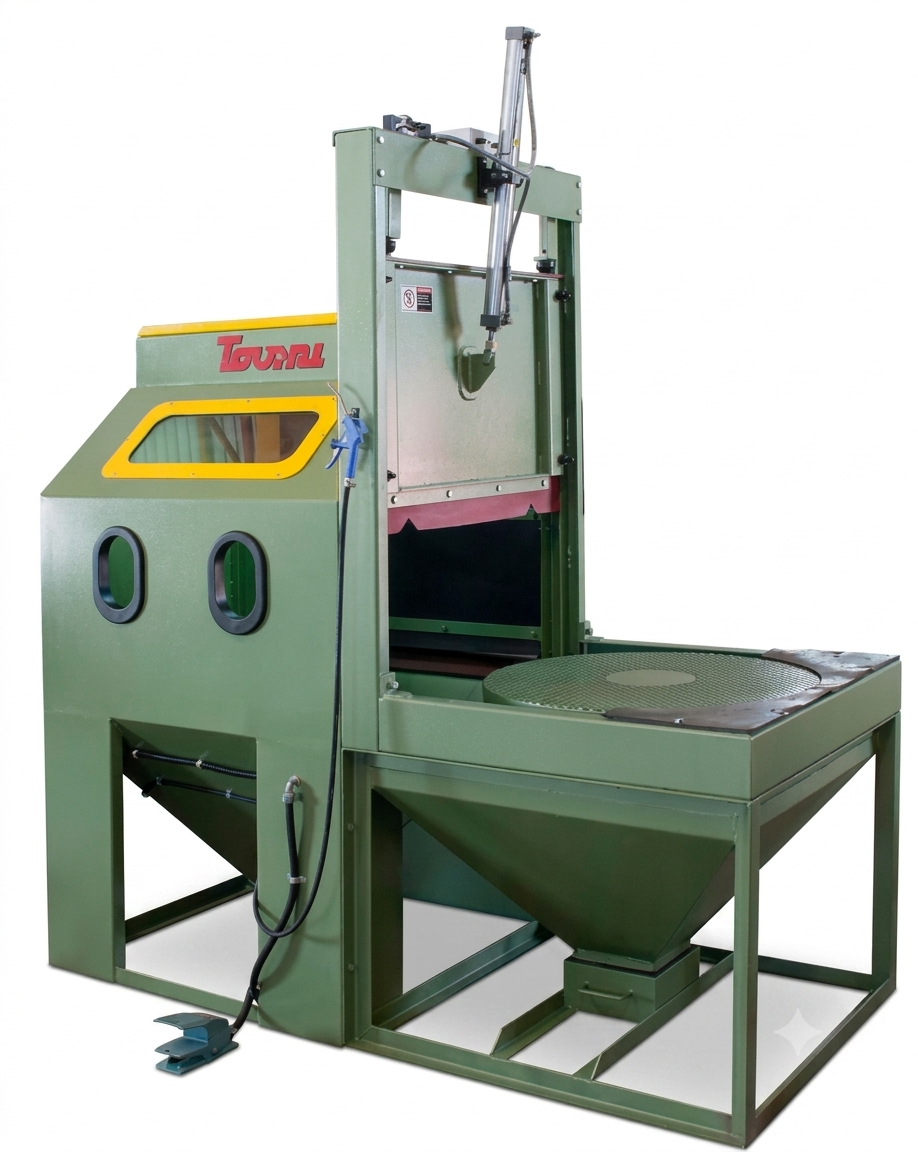

Hand Cabinet Manual Blasting Cabinet System
Hand Cabinet blasting machine is designed for manual surface cleaning, deburring, finishing, and preparation of small to medium components. The enclosed cabinet system allows operators to control the blasting process safely and accurately for maintenance, repair, and production support applications.
Product Overview
Hand Cabinet machines are suitable for manual blasting operations where operators need precise control over the workpiece surface. This system is effective for small components, repair parts, tools, prototypes, and maintenance jobs that require controlled cleaning or surface preparation.
PT Ferro Servita provides equipment consultation, machine selection support, spare parts, and technical assistance to help customers achieve reliable production performance and consistent finishing results.
Main Advantages
Manual Control
Operator-controlled blasting supports accurate cleaning on selected surface areas.
Safe Enclosure
Enclosed cabinet design helps keep blasting media contained during operation.
Process Efficiency
Helps improve cleaning speed, consistency, and preparation quality.
Technical Support
Supported by product consultation, spare parts, and after-sales assistance.
Technical Data
Product Specification
| Model Type | THC-90 | THC-10 |
|---|---|---|
| Max. Width of Workpiece | 400 mm | 800 mm |
| Max. Height of Workpiece | 300 mm | 300 mm |
| Diameter of Table | - | 800 mm |
| Max. Weight of Workpiece | 40 kg | 300 kg |
| Lighting | 2 × 60 W | 2 × 60 W |
| Nozzle Diameter | 9 mm | 9 mm |
| Air Consumption | 35.5 cfm at 6 bar | 35.5 cfm at 6 bar |
| Total Power Requirements | 0.5 Hp (0.35 kW) | 1 Hp (0.75 kW) |
| Machine Dimensions | Width 900 mm | Width 2 000 mm |
| Length 1 200 mm | Length 1 300 mm | |
| Height 2 000 mm | Height 2 600 mm | |
| Table Height - | Table Height 750 mm |
Abrasive Selection
Recommended Abrasive Media
Various abrasive media can be selected for hand cabinet blasting applications depending on workpiece material, surface condition, cleaning requirements, and desired finishing results.
Steel Shot
Steel Grit
Cut Wire
Stainless Steel Shot
Aluminium Oxide
Glass Beads
Ceramic Beads
Plastic Media
Need Hand Cabinet Blasting Machine?
Contact PT Ferro Servita for machine recommendation, blasting process consultation, spare parts, maintenance support, and pricing information.
Request Inquiry
