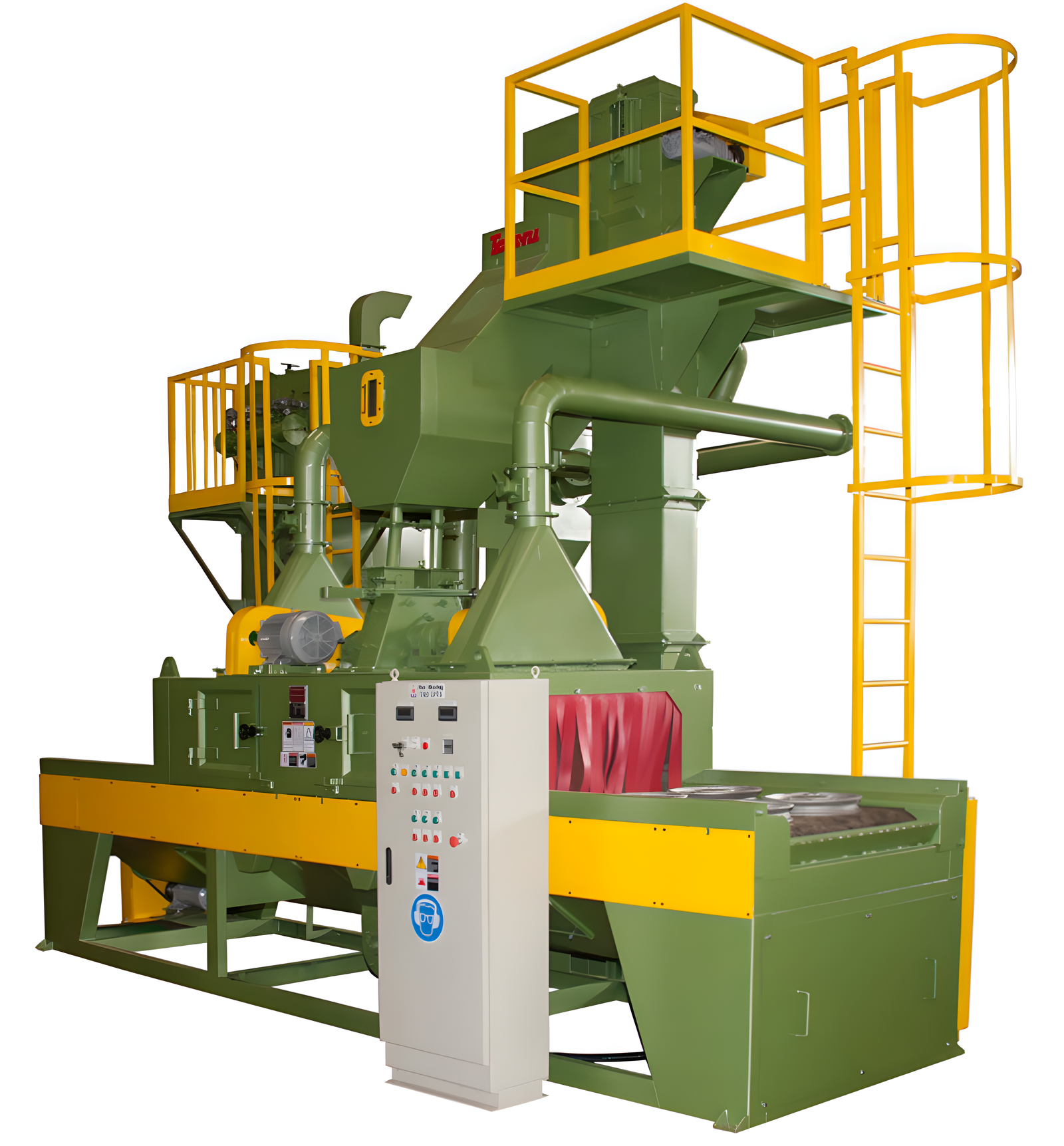

Horizontal Conveyor Continuous Conveyor Blasting System
Horizontal Conveyor blasting machine is designed for continuous surface cleaning, descaling, deburring, and preparation of flat, long, or fabricated components. The conveyor system moves workpieces through the blasting chamber to support stable production flow and consistent surface treatment results.
Product Overview
Horizontal Conveyor machines are suitable for continuous blasting operations where parts are transported horizontally through the blast chamber. This system is effective for plate, profile, fabricated structure, and long components that require efficient cleaning before painting, coating, or further production processes.
PT Ferro Servita provides equipment consultation, machine selection support, spare parts, and technical assistance to help customers achieve reliable production performance and consistent finishing results.
Main Advantages
Continuous Flow
Conveyor movement supports efficient continuous production and consistent blasting exposure.
Uniform Cleaning
Supports uniform cleaning quality on long, flat, and fabricated components.
Process Efficiency
Helps improve cleaning speed, consistency, and preparation quality.
Technical Support
Supported by product consultation, spare parts, and after-sales assistance.
Technical Data
Product Specification
| Model Type | THZ-2RA-300E | THZ-2FTJ |
|---|---|---|
| Max. Workpiece Width | 700 mm | 1 000 mm |
| Max. Workpiece Height | 300 mm | 400 mm |
| Number of Blast Wheels & Capacity | 2 × 5 Hp (3.7 kW) | 2 × 7.5 Hp (5.5 kW) |
| Air Consumption | 12 cfm at 6 bar | 18 cfm at 6 bar |
| Total Power Requirements | 19 Hp (14.25 kW) | 25 Hp (18.5 kW) |
| Machine Dimensions | Width 1 400 mm | Width 1 700 mm |
| Length 3 500 mm | Length 3 500 mm | |
| Height 4 500 mm | Height 4 800 mm |
Applications
Recommended Usage
Horizontal conveyor blasting systems are designed for continuous surface treatment of metal components through controlled conveyor movement and consistent abrasive exposure. Suitable for high-volume production lines, these systems provide efficient cleaning, descaling, rust removal, and surface preparation while maintaining uniform finishing quality.
Recommended Abrasive Media
Steel Shot
General Cleaning
Steel Grit
Heavy Scale Removal
Cut Wire
Controlled Finishing
Stainless Steel Shot
Stainless Components
Abrasive media selection depends on workpiece material, production speed, component dimensions, surface condition, and the required finishing performance.
Need Horizontal Conveyor Blasting Machine?
Contact PT Ferro Servita for machine recommendation, blasting process consultation, spare parts, maintenance support, and pricing information.
Request Inquiry
